Name: 30 Holes Pulp Paper Egg Tray Carton Making Machine With CE Certification
Brand: Jinan Wanyou Packing Machinery Factory
SKU: JL-P
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin baki telur putar >

30 Holes Pulp Paper Egg Tray Carton Making Machine With CE Certification

30 holes egg carton making machine

CE egg carton making machine

egg tray carton making machine

Tempat asal:

Jinan, Shandong, Cina

Nama merek:

ZSJ-Series

Nomor model:

JL-P

Hubungi kami

Permintaan Penawaran

Detail Produk

Bahan:

Besi tuang, baja

ukuran baki telur:

295mm*295mm 30 butir telur

Keluaran untuk baki telur:

350-3000pcs/jam

Bahan mentah:

Limbah kertas

Volume air yang dikonsumsi:

0,65ton/jam

Volume kertas bekas yang dikonsumsi:

225kg/jam

Menyoroti:

30 holes egg carton making machine

CE egg carton making machine

egg tray carton making machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Harga

USD 21000-35000

Kemasan rincian

dalam wadah

Waktu pengiriman

35 hari kerja

Syarat-syarat pembayaran

Serikat Barat, MoneyGram, L/C, T/T

Menyediakan kemampuan

1 Set Per Bulan

Produk Terkait

Video

Menghemat Energi Rotary Tipe 2500pcs/h Mesin Tangki Telur Kertas Tangki Telur Produksi Baris Customized Cetakan Aluminium

Dapatkan Harga Terbaik

Video

Rotary Paper Egg Tray Machine 2000-3000pcs/H Orange And Green Pulp Moulding Machine untuk pembuatan kertas telur karton / Tray

Dapatkan Harga Terbaik

Video

70-150kw Mesin Cetak Pulp Kertas Kapasitas Besar yang Dapat Disesuaikan Untuk Pembuatan Baki Telur

Dapatkan Harga Terbaik

Video

70-150kw Mesin Tray Telur Rotary Kapasitas besar Disesuaikan

Dapatkan Harga Terbaik

Hubungi kami

+8615665703348

jnrunliang@hotmail.com

Hubungi Sekarang

Deskripsi Produk

Technical parameters of egg tray machine:

China Recyclable fully tableware Pulp Molding Machine /paper notebook egg tray making machine Germany Valves uses waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays. It has 2 types forming method: one is Reciprocating Type, the other is Rotary Type Egg Tray Making Machine. It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw material.

Technical data of egg tray machine:

Item	Consumption/requirement	Remark
Electricity Power	200kw	The burning source for the dryer boiler is selectable. Clients only need to choose one suitable for local site.
Waste paper	450kg/h
Water	1.35t/h
Natural gas/Diesel oils	180m3/h/140kg/h around
Firewood	500kg/h around
Workshop	750m2(10mWidth*75mlength)
Machine size	65m*10m
Workers Requirement	10-12 persons

1. pulping system:including the hydrapulper,pump,disk mill,water tank,pulp tank,mixer,etc..to make the waste paper into pulp.

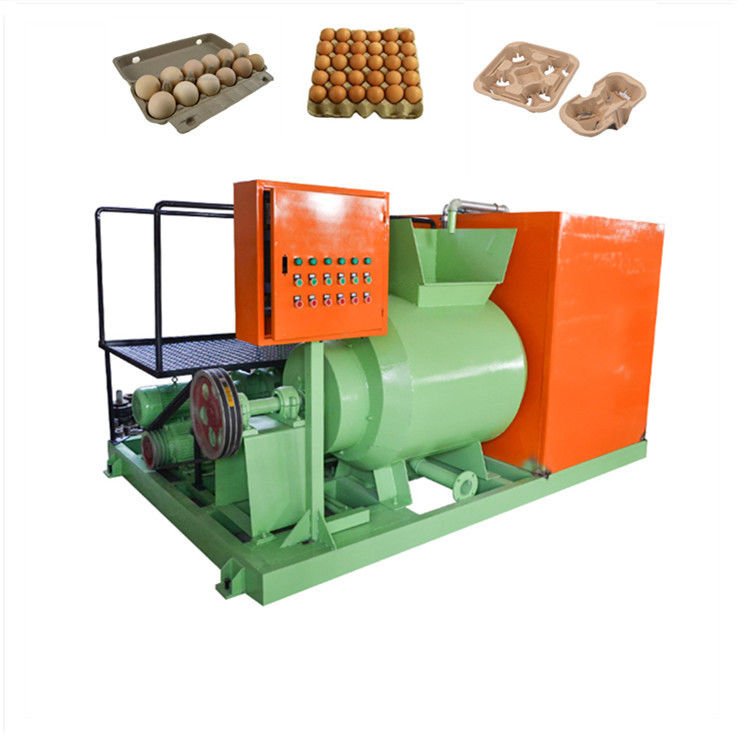

Hot china egg tray machine with hydraulic pulper

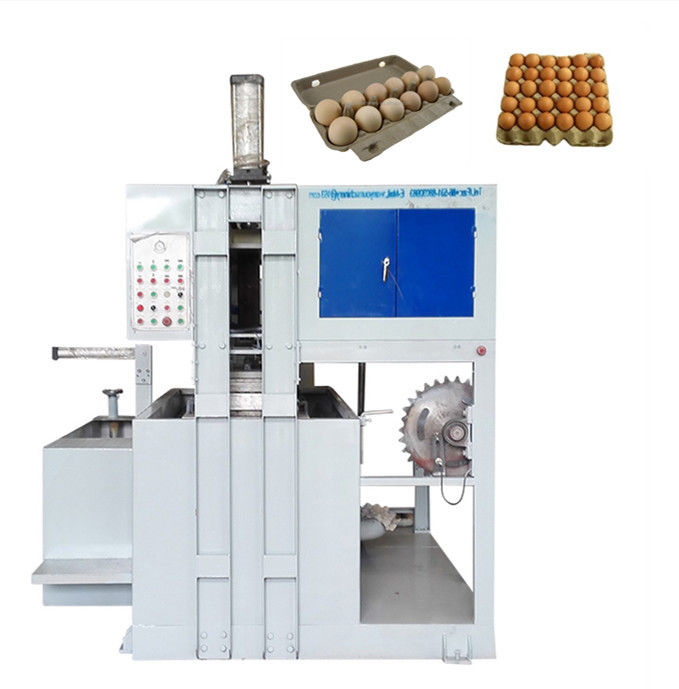

2. forming system: including the molding machine,molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.

Hot china egg tray machine with hydraulic pulper

3. drying system: including the oven,chains,trays,heating pipes,fans,boiler,etc..to dry the wet trays so they can be used directly.

Hot china egg tray machine with hydraulic pulper

The raw material is any wastepaper(without plastic) and water.

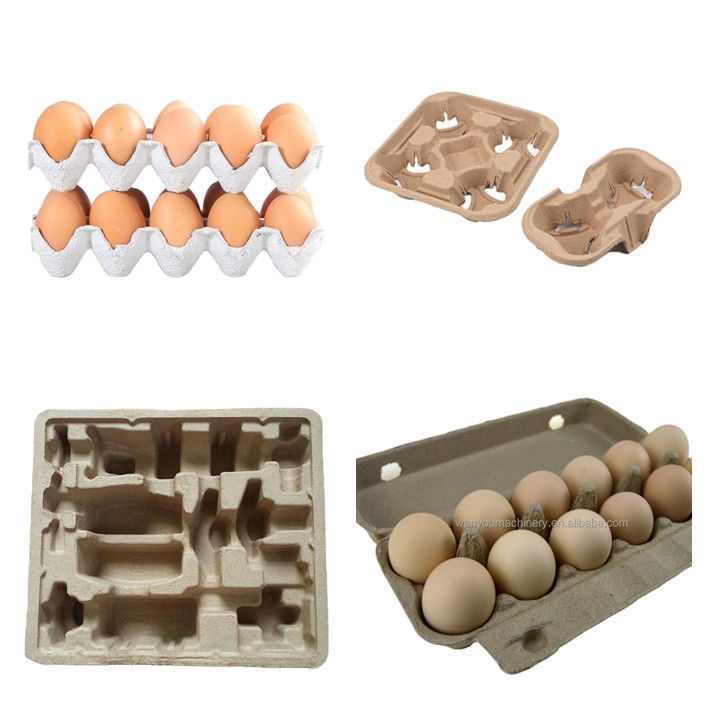

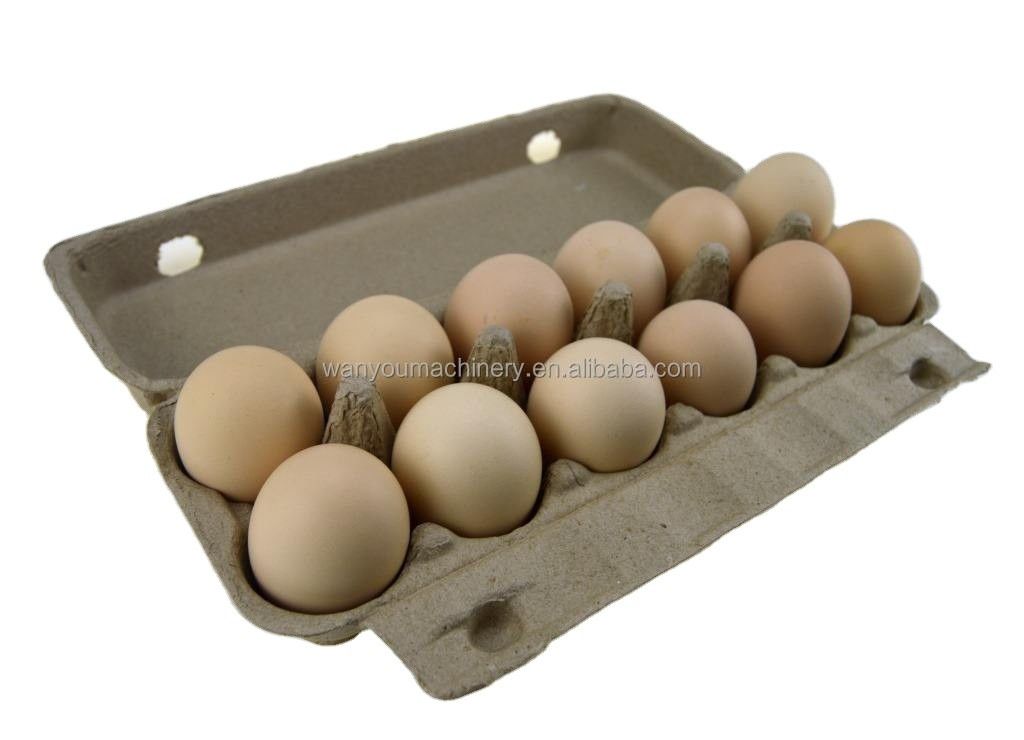

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)This production line is suitable for the following products:

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn’t change frequently) pulp molding products with large quantity.
